Sales of mold polishing materials
Grindstones
Hashimoto Industry believes that the grindstone process is the most important process in mirror surface polishing.
Good quality grinding can be seen consistently down to the last fragment.
We have succeeded in overcoming what appears to be a simple requirement but is actually very difficult to achieve.
The grindstone must produce little scoring and be neither too hard nor too soft.
We were unsatisfied with the finish produced by commercially available grindstones and came up with our own product, packed with the know-how we have built up over many years. This is the Hashimoto original grindstone.

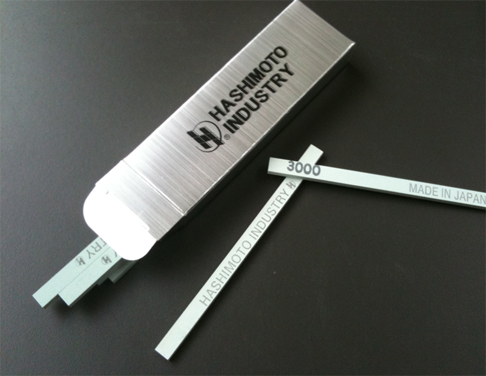

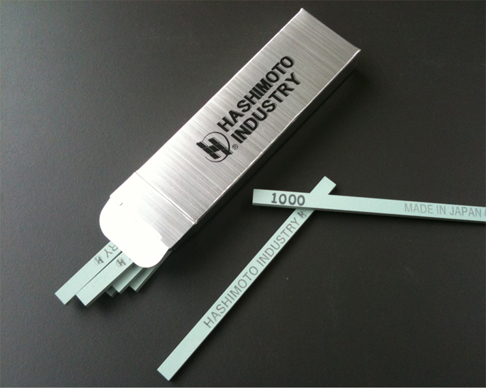

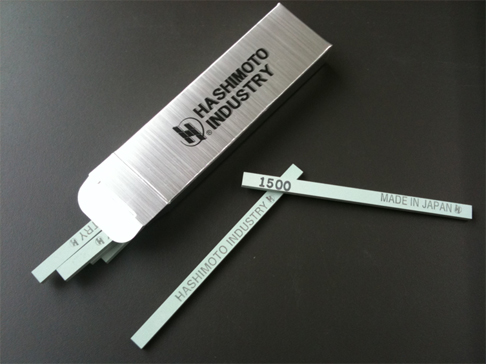

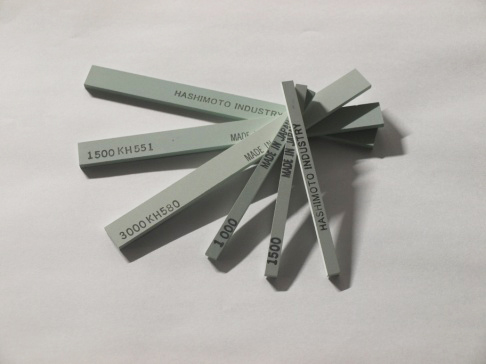

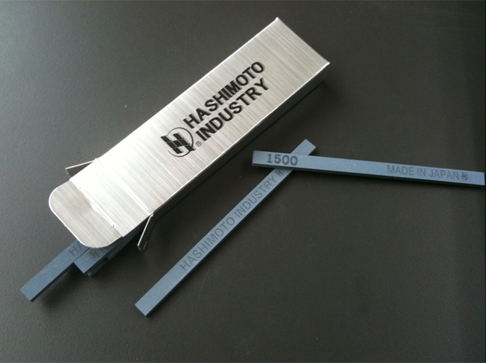

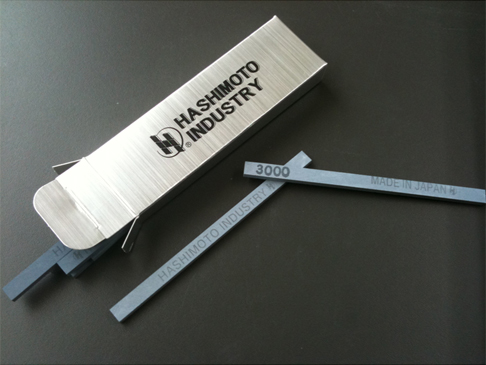

Hashimoto original GC grindstone
 |
Characteristics
Our original GC grindstone has excellent grindability, produces little scratching and rarely clogs.
We use a hard abrasive, meaning it is perfect for hardened steel of HRC50 or above.
Examples of use
HPM38, STAVAX, S-STAR, SKD11 series, SKD61series, high-speed, super-steel, etc.
For exceptional use, it is also perfectly suited to the CENA-1 and NAK Premium.
|
| Product number |
＃1000 |
＃1500 |
＃3000 |
| |
 |
 |
 |
| Size |
100×4×1 |
100×4×1 |
100×4×1 |
| 100×6×2 |
100×6×2 |
100×6×2 |
| 100×6×3 |
100×6×3 |
100×6×3 |
| 150×13×3 |
150×13×3 |
150×13×3 |

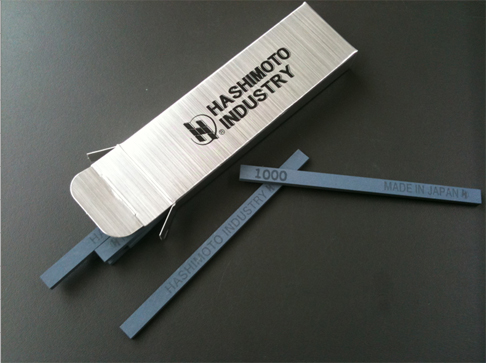

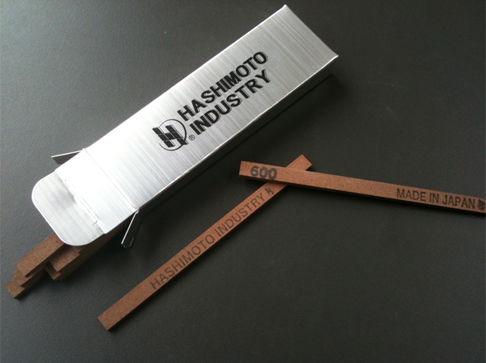

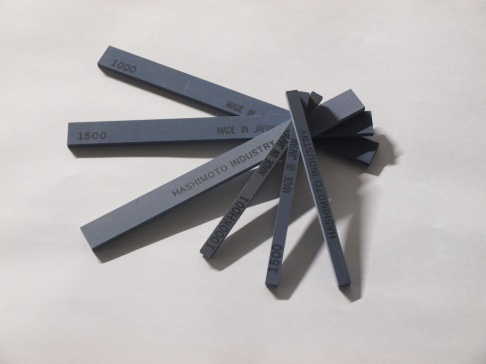

Hashimoto original carbon grindstone
 |
Characteristics
Our original carbon grindstone has excellent grindability, produces little scratching and rarely clogs.
We use a soft abrasive, meaning it is perfect for pre-hardened steel of HRC40 or below.
Examples of use
HMP-PRO, HPM-MAGIC, HPM-7, NIMAX, PLAMAX, NAK80, NAK55, PX-5, S50C, SCM440, etc. |
| Product number |
＃1000 |
＃1500 |
＃3000 |
| |
 |
 |
 |
| Size |
100×4×1 |
100×4×1 |
100×4×1 |
| 100×6×2 |
100×6×2 |
100×6×2 |
| 100×6×3 |
100×6×3 |
100×6×3 |
| 150×13×3 |
150×13×3 |
150×13×3 |

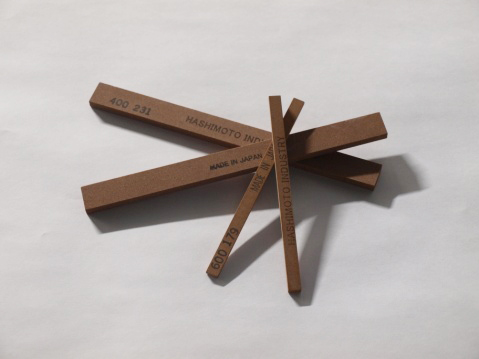

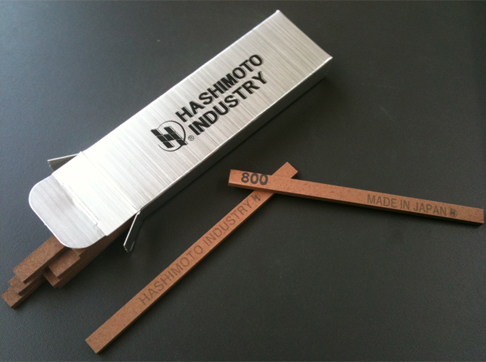

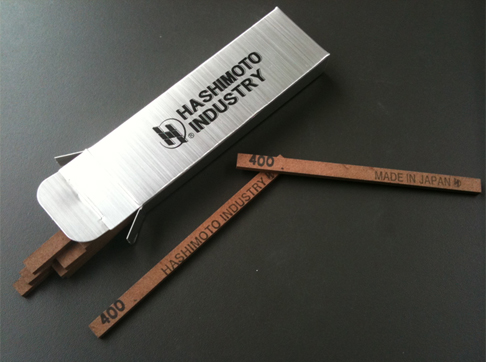

Hashimoto original RG grindstone
 |
Characteristics
Our original RG grindstone uses a hard abrasive and tends to wear down little as a result.
It is the perfect grindstone for eliminating processing lines left after electric discharge processing or CNC processing.
Examples of use
This grindstone can be used on any type of steel, including both hardened and pre-hardened steel. |
| Product number |
＃400 |
＃600 |
＃800 |
| |
 |
 |
 |
| Size |
100×6×2 |
100×6×2 |
100×6×2 |
| 100×6×3 |
100×6×3 |
100×6×3 |
| 150×13×3 |
150×13×3 |
150×13×3 |
Diamond paste
As the name suggests, diamond paste and diamond powder are essential to diamond polishing strength.
Diamond crystals come in two categories, monocrystal and polycrystal, and these are divided according to application.
 |
Image of a monocrystal
Angular dimensions. A powerful polishing effect can be achieved from areas with large grain diameters thanks to the sharp edges.

|
 |
Image of a polycrystal
This is a collection of very small diamonds, rigidly bonded together in bulk.
A powerful polishing effect can be achieved from areas with small grain diameters thanks to the countless tiny edges.

|
Similar to grindstones, with diamond paste and diamond powder it is crucial that there is consistent good quality polishing.
With Hashimoto original diamond paste and diamond powder, we solved this problem by insisting on “high concentration”.
We have used approximately three times the amount of diamonds used in normally-available products, and our even crystal size makes us unparalleled in terms of a steady polish.

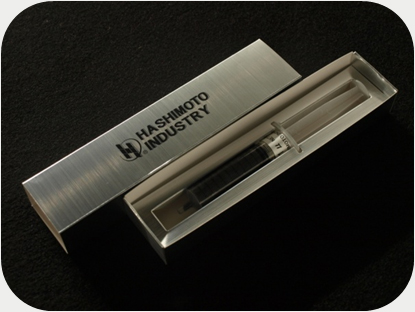

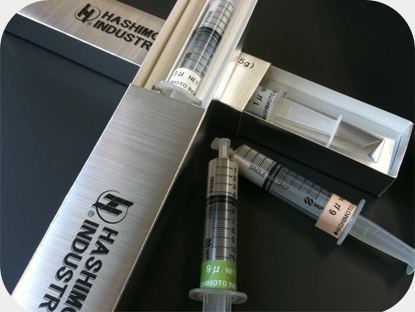

Hashimoto original diamond paste
 |
| Monocrystal |
| 3μ（♯8,000） |
6μ（♯3,000） |
9μ（♯1,800） |
| 5 g |
5 g |
5 g |
| Polycrystal |
| 1μ（♯14,000） |
3μ（♯8,000） |
6μ（♯3,000） |
9μ（♯1,800） |
| 5 g |
5 g |
5 g |
5 g |
| 10 g |
10 g |
10 g |
10 g |
Examples of use
Hashimoto original diamond paste can be used on any type of steel, including both hardened and pre-hardened steel. |

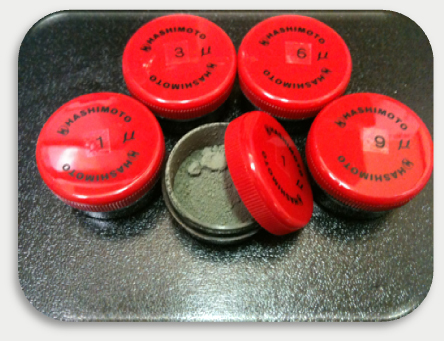

Hashimoto original diamond powder
 |
| Monocrystal |
| 1μ（♯14,000） |
3μ（♯8,000） |
6μ（♯3,000） |
9μ（♯1,800） |
20 CARAT
（4 g） |
20 CARAT
（4 g） |
20 CARAT
（4 g） |
20 CARAT
（4 g） |
| Polycrystal |
| 1μ（♯14,000） |
3μ（♯8,000） |
6μ（♯3,000） |
9μ（♯1,800） |
20 CARAT
（4 g） |
20 CARAT
（4 g） |
20 CARAT
（4 g） |
20 CARAT
（4 g） |
Examples of use
Hashimoto original diamond powder can be used on any type of steel, including both hardened and pre-hardened steel. |
Rotary stage
Depending on the mold dimensions (cylinder, circle, rod, etc.), rotating the mold can lead to dramatic improvements in polishing efficiency.
The angle, direction of rotation and rotation speed can all be freely controlled, with a compact design that minimizes loss of worktop space.

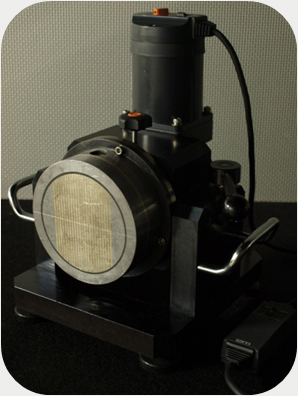

| Magnetic chuck version |
|

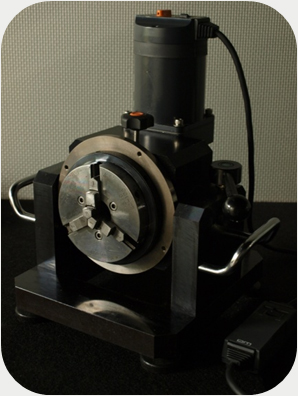

Scroll chuck version |
 |
|
|
 |
|
 |
|
 |

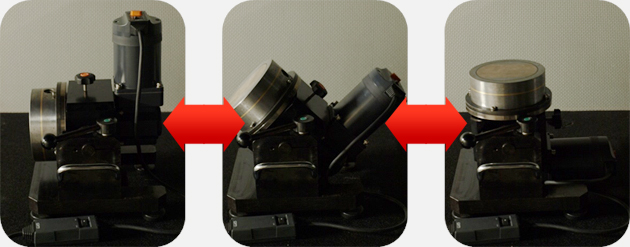

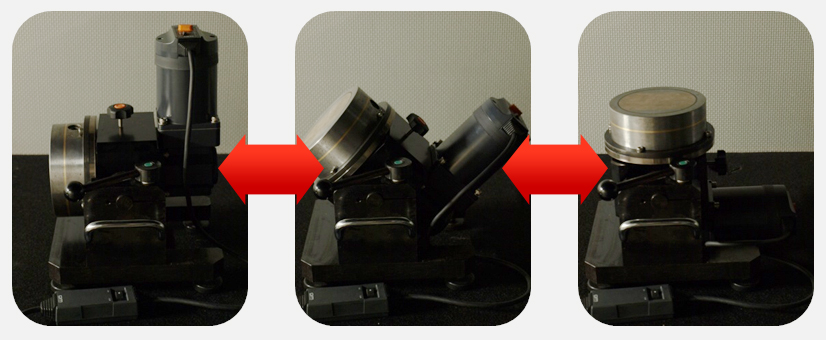

The revolving part of the rotary stage itself allows angle adjustments between 0° and 90°.

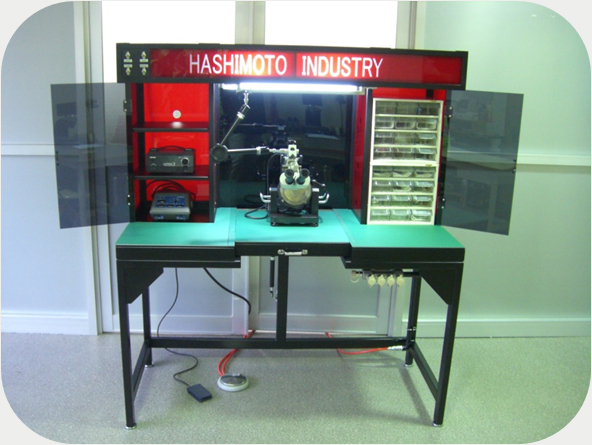

System work table
Our system work table is designed with work efficiency in mind, allowing you to do what you want, how you want and when you want.
 |
 |
LED lighting system |
 |
Tool storage shelves |
 |
Lens system (10x) |
|
 |
Air tool insertion coupler |
|
|

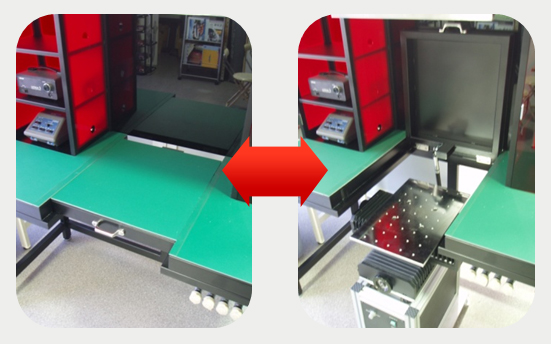

 Flip-up table |
Flip-up table
